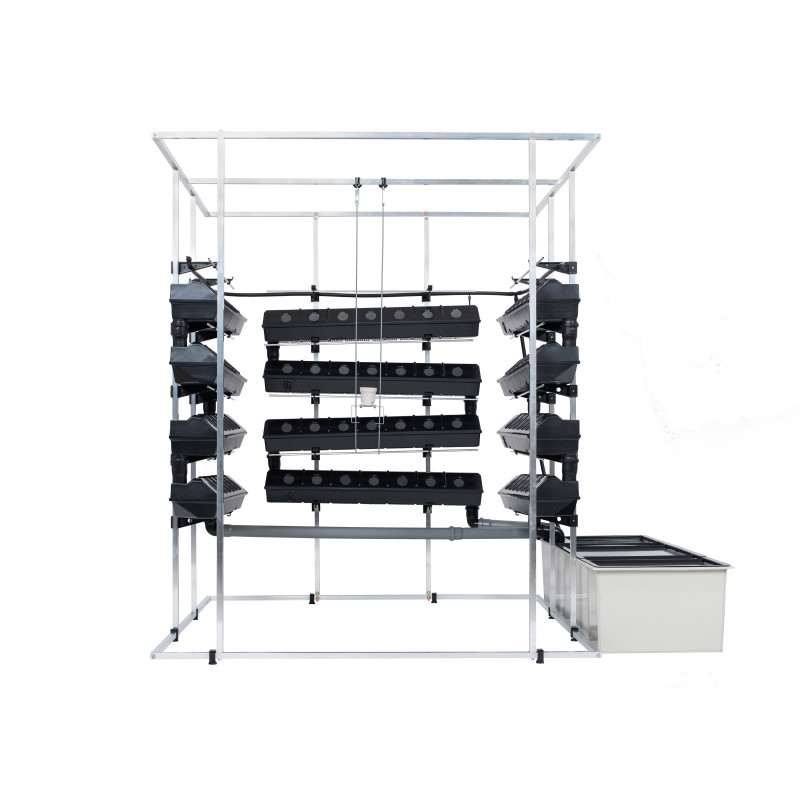

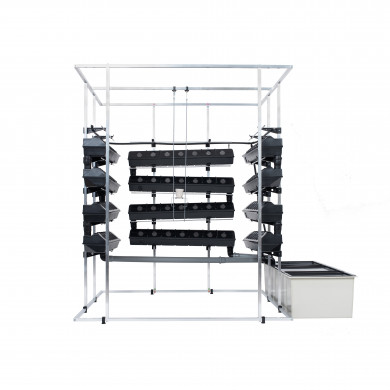

Vertical hydroponic system - 3SM

The recommended amount of seedlings:

42pcs of larger plants such as dwarf tomatoes, chillies...

84pcs of smaller plants such as basil, oregano ...

cena 29 900 Kč

11003

Méně Více

For those who are constrained by length, width and depth, we have developed the 3SM.

It is a hydroponic apparatus utilizing the technique of the nutrient film (NFT-nutrient film technique), which is arranged in a vertical growing system with gravity flow-through of nutrient water to cultivated plants.

In this system there is no solid media, the roots are placed directly into the water which flows through the drainage system over the entire area of each successive planting container, it also oxidizes without light (to eliminate the formation of algae).

By this design, an even supply of nutrients to each plant in the system is ensured.

This system allows an area of about 2,25m² in an area of about 3m².

Further features are easy maintenance, either when mixing the simple nutrient solution and by its control and good access to the plants for their maintenance as well as during harvesting. The issue of waste in a system using solid media (clay, rockwool...), is reduced, which is a financial benefit for each harvest, also reducing the time taken to dispose of waste or cleaning of reusable material (expanded clay). The only waste is the root system of plants, which after opening the lid is simply pulled out and can be recycled as compost.

Planting containers can be easily removed and washed

Our NFT 4D VERTICAL system can also be used as an Aquaponic system.

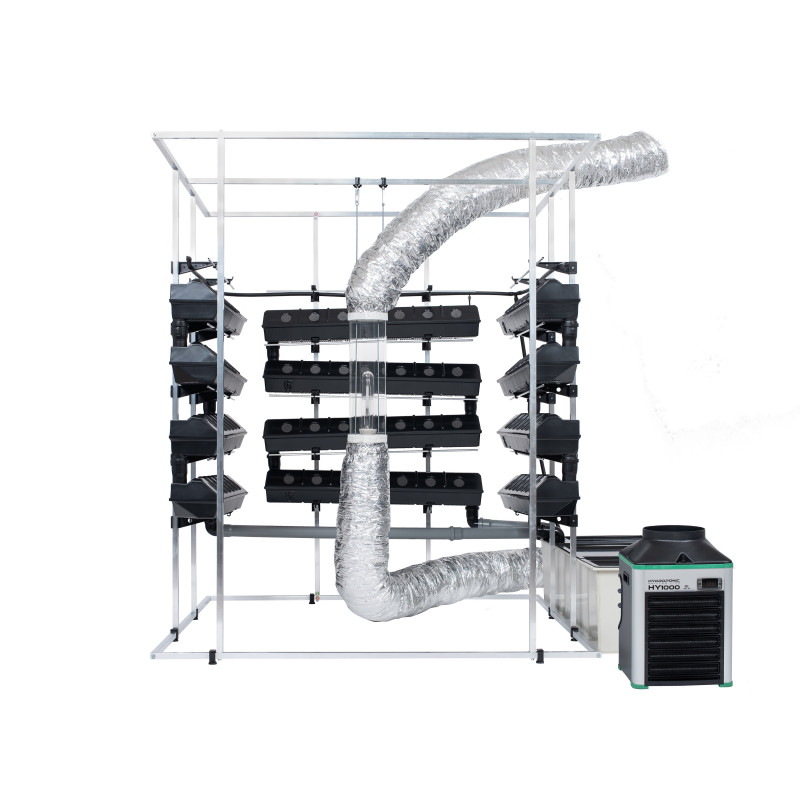

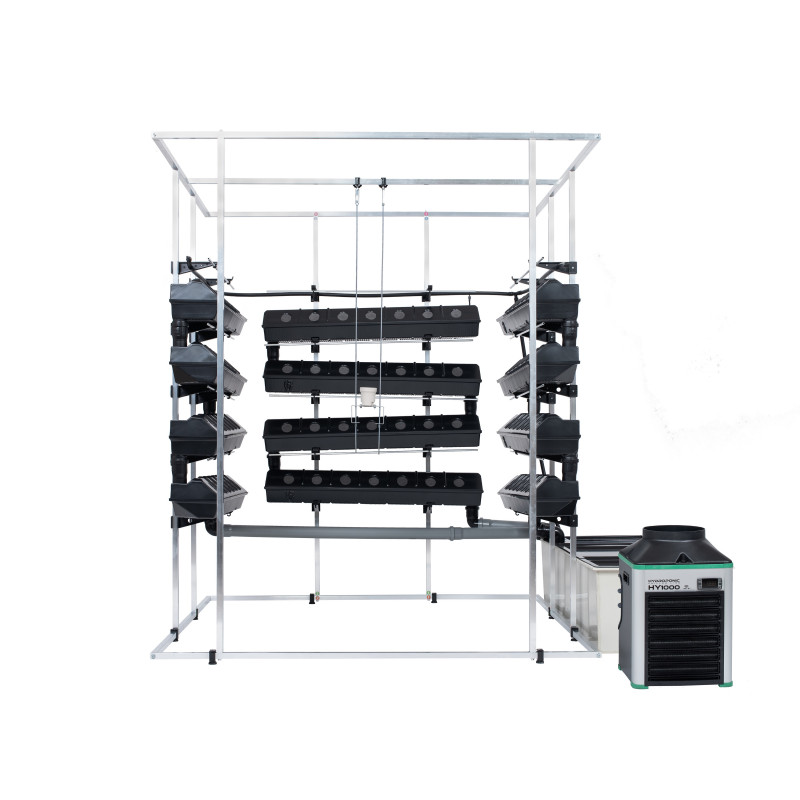

Lamps, LED, TECO water coolers and even Cool Tubes with piping for cooling light sources shown in the photos are not part of the production systems. They can be ordered on request.

Technical data:

Recommended illumination:

1x 400-600W

Pump power:

25 W

A number of pages:

3 pieces

Side length:

1500 mm

Number planting containers on hand:

4 pieces

Contents reservoir:

140 l

Design:

left and right

Overall system height:

1775 mm

Recommended space:

LxWxH 1500x1500x2000 mm

Realspace with the door closed:

2,25 m²

Realistically usable area:

3 sq.m.
